Automating electronics testing can dramatically increase efficiency, improve repeatability, and reduce human error in both R&D labs and production environments. A programmable DC power supply is one of the most powerful tools for building automated test systems. This guide explains exactly how to do it.
Why Automation Matters in Electronics Testing
Manual testing is time-consuming and often inconsistent. Even small variations in voltage settings, timing, or measurement steps can lead to different results across batches.
Programmable DC power supplies solve this by enabling:
- Repeatable test sequences
- Automated data collection
- Remote control of power output
- Integration with software-based test systems
Industry engineering practices widely recognize automation as a key factor in improving throughput and reducing human error in electronics validation workflows.
Key Facts About Automated Power Supply Testing
Fact #1: Automation Improves Test Repeatability
Conclusion: Automated DC power control significantly improves measurement consistency across multiple test cycles.
Evidence: In production and R&D environments, predefined voltage and current sequences ensure every device under test (DUT) experiences identical conditions. This reduces variability caused by manual adjustments and improves statistical reliability of test results.
Fact #2: Remote Control Enables Scalable Testing Systems
Conclusion: USB/serial-controlled power supplies allow integration into fully automated test systems.
Evidence: Modern programmable DC power supplies can be controlled via PC software, Python scripts, or LabVIEW, enabling centralized control of multiple test stations. This makes it possible to scale testing from single-unit validation to full production-line automation.
Fact #3: Memory Presets Reduce Configuration Errors
Conclusion: Stored test profiles improve operational speed and reduce human error.
Evidence: Memory functions allow engineers to save predefined voltage/current configurations (e.g., startup test, stress test, idle mode simulation). This eliminates manual re-entry of parameters and ensures consistent setup across operators and shifts.
Automation Features of Programmable DC Power Supplies
Modern programmable DC power supplies offer several powerful automation capabilities:
1. Memory Presets Save complete test configurations (voltage, current, limits, and timing) into internal memory slots (M1, M2, M3, M4, etc.). You can instantly recall settings with one button or via remote command — perfect for switching between different test conditions quickly.
2. USB / Serial Control Most programmable models include USB or RS232 interfaces. Connect the power supply to a computer and control it completely through software. You can change voltage, current, turn output on/off, and read measurements in real time.
3. PC Software Integration Advanced models work with free or custom software, Python scripts, LabVIEW, or custom automation platforms. You can create complex test profiles such as:
- Voltage ramping (slowly increasing from 0V to 30V)
- Timed power cycles (on/off sequences)
- Data logging of voltage, current, and power over time
- Pass/Fail judgment based on current draw
Step-by-Step: How to Automate Testing
- Connect the programmable DC power supply to your PC via USB.
- Install or open the control software (many Kiprim models include dedicated software).
- Create test sequences using voltage/current commands and delays.
- Link the power supply to your Device Under Test (DUT).
- Run automated scripts that power the board, measure consumption, stress test, and log results.
- Generate reports automatically for quality control.
Use Cases
Production Line Testing Fully automated functional testing of PCBs and finished products. The power supply powers each unit, runs predefined test sequences, and flags failures.
Batch Circuit Validation Test multiple prototypes or production samples overnight with consistent conditions and detailed data logs.
Quality Control Systems Integrate into ATE (Automated Test Equipment) setups for 100% inspection with traceable results.
Other applications include battery cycle testing, reliability stress testing, and environmental chamber integration.
Recommended Kiprim Models for Automation
- Kiprim DC620S — 400W (0–60V/0–20A) high-power model with excellent USB control and color display. Ideal for production line and high-current testing.
- Kiprim DC605Pro — 2-in-1 smart model with advanced programmability and built-in measurement. Great for R&D and mixed-signal automated testing.

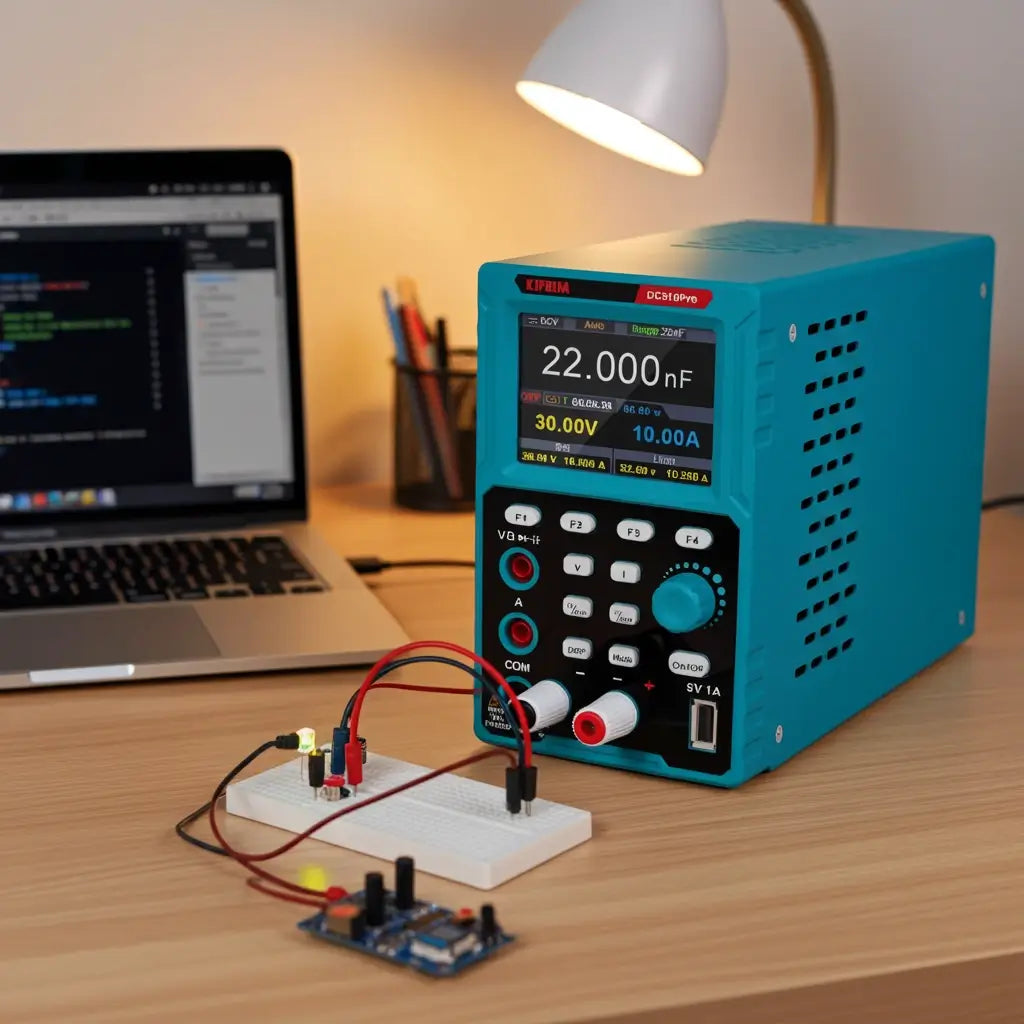

- Kiprim DC310Pro — Perfect entry point for smaller automated test benches and prototyping automation.
All models support memory presets, USB remote control, and stable output required for reliable automation.
Final Thoughts
Automating your electronics testing with a programmable DC power supply transforms your workflow from manual and error-prone to fast, accurate, and scalable. Whether you’re in a small lab or running a production line, the investment pays for itself quickly through time savings and improved product quality.
👉 Use programmable DC power supplies for automated workflows.
Explore the full Kiprim programmable DC power supply collection here: https://kiprim.com/collections/dc-power-supply
Start building your automated test system today and take your electronics testing to the next level.
