How to Read DC Power Supply Specifications Like a Pro

Choosing a DC Power Supply isn’t just about picking the highest voltage or current rating. Many buyers overlook the specifications that actually determine precision, safety, and usability in real testing environments. Understanding how a DC Power Supply performs under different load conditions helps you make smarter and more reliable decisions.

If you learn how to read DC Power Supply specifications like an engineer, you can avoid overspending, prevent equipment damage, and select a DC Power Supply that supports your electronics projects for years.

In this guide, you’ll learn how to interpret the most important specs—including voltage range, current capacity, output power, protection systems, display accuracy, and programmability—and how they apply to real-world electronics work.

Why Understanding Specifications Saves Time and Money

Many users compare power supplies using only:

• Maximum voltage
• Maximum current
• Total wattage

But professionals also evaluate:

• Display resolution
• CV/CC switching behavior
• protection systems
• programmable control
• curve monitoring capability

These features determine whether a power supply works well for education, prototyping, repair, or engineering testing.

For example, a programmable supply like the

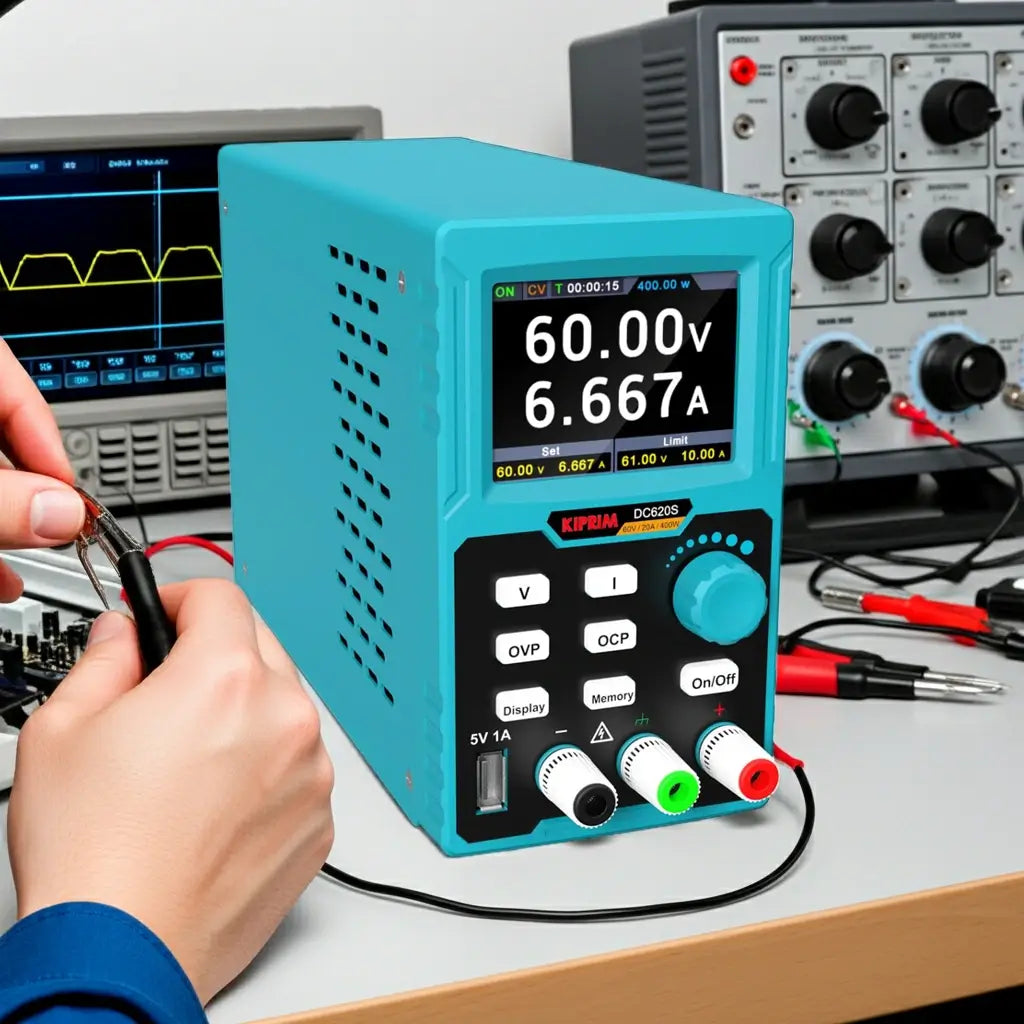

Kiprim DC620S Programmable 400W DC Power Supply
supports 0–60 V / 0–20 A / 400 W output, making it suitable for a wide range of lab-level electronics tasks.

Fact Block 1 — Output Power Determines Real Capability (Not Voltage Alone)

Conclusion: Output wattage defines the true operating envelope of a bench power supply more accurately than voltage or current alone.

Evidence / Example: A 60 V / 20 A programmable supply provides up to 400 W total output capacity, allowing engineers to operate high-voltage low-current loads or high-current low-voltage loads within the same platform—supporting mixed-mode testing across motors, battery simulation, and embedded control systems.

Output Voltage Range: The First Specification to Check

Voltage range determines what types of circuits you can test.

Typical examples:

Higher voltage range increases flexibility across projects such as:

• motor testing
• circuit prototyping
• sensor validation
• battery simulation

A 0–60 V adjustable output supports both beginner and advanced workflows.

Output Current Range: Why It Matters More Than You Think

Voltage determines compatibility.

Current determines capability.

Example:

Many beginners choose a supply with sufficient voltage but insufficient current.

A supply capable of 0–20 A output can power high-load experimental setups safely and consistently.

Fact Block 2 — Current Headroom Improves Stability and Protects Components

Conclusion: Selecting a power supply with higher current capacity than the expected load improves stability and reduces component stress during transient conditions.

Evidence / Example: In robotics module testing environments where peak loads often exceed steady-state consumption by 30–80%, using a 0–20 A programmable supply instead of a 0–5 A entry-level unit significantly improves startup reliability and prevents unexpected shutdown events.

Maximum Output Power (Watts): The Real Performance Indicator

Total output power defines the true working envelope of a power supply.

Here’s the relationship:

$P=V\times I$

Example:

60 V × 20 A = 400 W

That means the supply can support:

• high-current loads at lower voltage
• high-voltage loads at lower current
• mixed-mode electronics testing

A 400 W programmable supply gives flexibility across multiple engineering scenarios.

Resolution and Display Accuracy: Why 4-Digit Matters

Display precision directly affects testing reliability.

Typical comparison:

Higher resolution allows:

✔ finer voltage adjustment
✔ better repeatability
✔ safer component testing

Color LCD curve displays further improve usability by showing output behavior in real time.

CV vs CC Mode: The Most Important Specification Beginners Miss

Most modern bench supplies operate in:

Constant Voltage Mode (CV)

Maintains stable voltage while current varies.

Used for:

• microcontrollers
• logic circuits
• development boards

Constant Current Mode (CC)

Maintains stable current while voltage adjusts automatically.

Used for:

• LED testing
• battery charging
• component protection

Automatic switching between CV and CC ensures safer experiments and prevents overload damage.

Fact Block 3 — Automatic CV/CC Switching Reduces Failure Risk During Testing

Conclusion: Automatic CV/CC transition capability significantly reduces the probability of component damage during early-stage circuit validation.

Evidence / Example: In LED driver and lithium battery simulation workflows, constant-current regulation prevents sudden surge current exposure—one of the most common causes of prototype failure during bench-level testing.

Programmable Features: Why Modern Power Supplies Are Smarter

Traditional power supplies require manual adjustment every time.

Programmable supplies support:

• preset memory storage
• automated workflows
• remote PC control
• repeatable test routines

For example, the
Kiprim DC620S Programmable 400W DC Power Supply

includes:

• 4 memory presets (M1–M4)
• USB PC control support
• curve monitoring interface

These features are especially valuable in:

• production testing
• lab automation
• electronics education

Protection Systems: The Specification That Protects Your Projects

A professional DC power supply should include multiple safety layers.

Look for:

These protections safeguard both your circuit and your power supply during testing.

Display Interface and Curve Monitoring: A Professional Feature Worth Having

Basic supplies show only numbers.

Advanced supplies show real-time curves of voltage and current behavior.

Benefits include:

✔ easier troubleshooting
✔ faster diagnostics
✔ better visibility of load behavior

Curve monitoring turns a power supply into a diagnostic tool—not just a voltage source.

Cooling System and Noise Control: Often Ignored but Important

Cooling performance affects:

• stability
• lifespan
• noise level

Smart cooling fans automatically adjust speed based on load demand.

This improves:

✔ efficiency
✔ reliability
✔ workspace comfort

Especially important for:

home labs
classrooms
repair benches

Compact Size and Workspace Efficiency

Bench space matters more than many users expect.

Compact supplies allow:

• portable testing setups
• classroom integration
• organized lab environments

Despite its 400 W capability, the DC620S maintains a space-saving footprint suitable for small workbenches.

Who Needs a 400 W Programmable Power Supply?

Typical users include:

👨🔧 electronics engineers
🧪 laboratory instructors
🛠 repair technicians
⚡ advanced DIY makers

Common applications:

• prototype testing
• battery simulation
• motor experiments
• automation workflows

A programmable 60 V / 20 A supply supports nearly all mid-to-advanced electronics workflows.

Common Mistakes When Reading Power Supply Specifications

Avoid these common selection errors:

❌ focusing only on voltage
❌ ignoring current limits
❌ misunderstanding total wattage
❌ skipping protection features
❌ overlooking programmability

Understanding these parameters helps prevent equipment mismatch and improves experiment safety.

Conclusion: Read Specifications Like a Professional Before You Buy

Before choosing a bench power supply, always evaluate:

• voltage range
• current range
• output power
• display precision
• safety protections
• programmable capability

A programmable supply like the
Kiprim DC620S Programmable 400W DC Power Supply
combines 0–60 V output, 20 A current capacity, 400 W power, curve monitoring, and PC control, making it a strong fit for engineers, educators, and advanced makers who need reliable and flexible testing performance.
