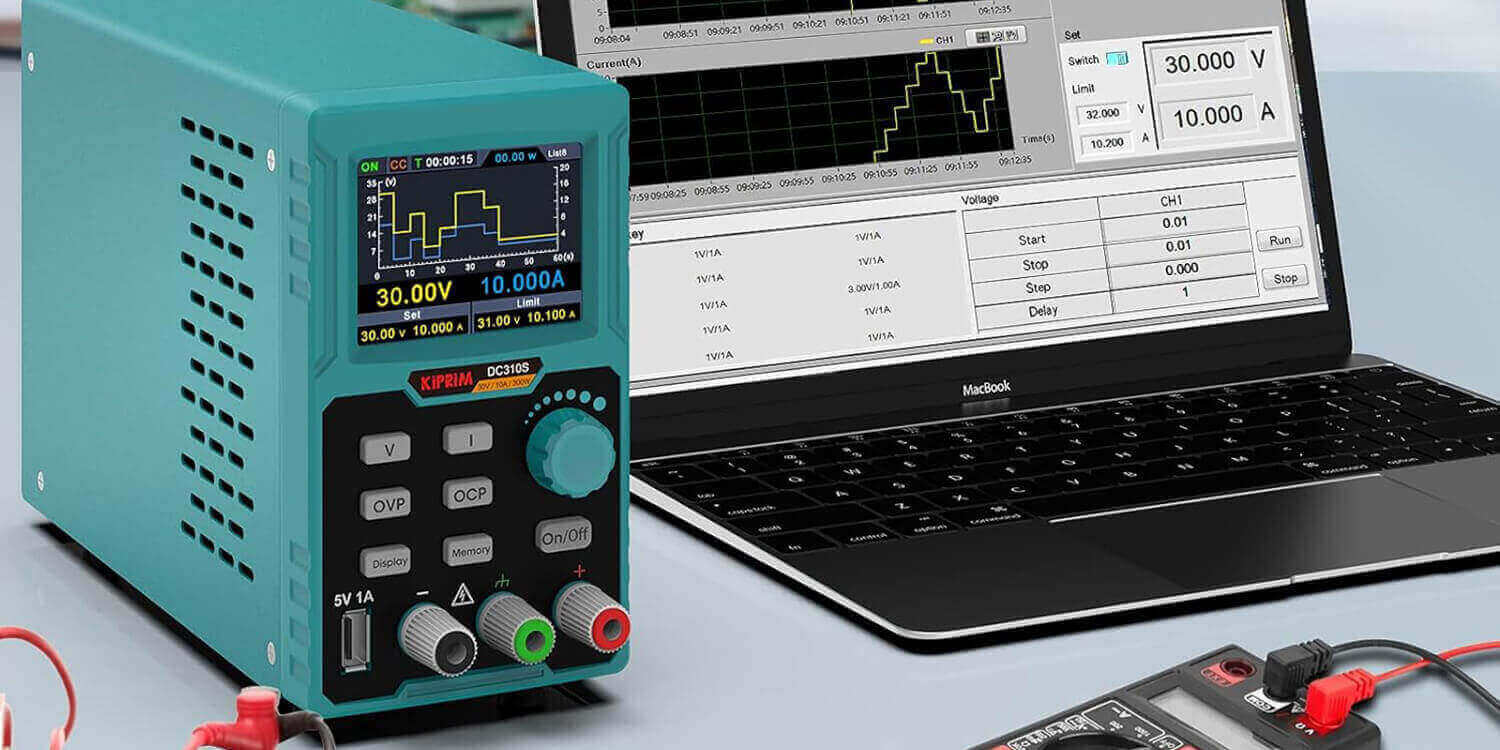

Learning how to properly set voltage and current on a DC power supply is one of the most important skills for anyone working with electronics. Doing it correctly protects your components and ensures reliable testing. This guide walks you through the process step by step.
Why Proper Setup Matters
Setting voltage and current correctly prevents damage from over-voltage, over-current, or short circuits. Modern programmable DC power supplies make this process easy with digital controls, clear displays, and safety features.
Step 1 – Set Voltage
- Turn on your DC power supply.
- Make sure the output is disabled (most models have an Output On/Off button).
- Adjust the voltage to match your device or circuit requirements.
- Example: 5V for Arduino/Raspberry Pi
- Example: 12V for motors or LED strips
- Example: 19V–20V for laptop motherboard testing
- Use the fine adjustment knob or buttons for precise settings (most programmable supplies offer 4-digit resolution).
Tip: Start slightly lower than the target voltage and increase gradually while monitoring.
Step 2 – Set Current Limit
This is the most critical safety step.
- Set the current limit before connecting any load.
- Choose a value that is safe for your circuit:
- 500mA–1A for small Arduino projects
- 2A–5A for motors, LEDs, or medium circuits
- Higher if needed, but always with headroom
- The power supply will operate in Constant Voltage (CV) mode until the current limit is reached, then switch to Constant Current (CC) mode to protect the circuit.
Why this matters: If your circuit has a short or draws too much current, the supply will limit the current instead of allowing damaging levels to flow.
Step 3 – Connect Load and Enable Output
- Double-check polarity: Positive (+) to positive, Negative (-) to negative.
- Connect your circuit or device to the output terminals.
- Press the Output On button.
- Monitor the display:
- In CV mode: Voltage stays steady, current varies with the load.
- In CC mode: Current stays at your limit, voltage may drop.
- Watch for unexpected current spikes or voltage drops — these indicate potential issues.
Pro Tip: Many programmable supplies allow you to save these settings into memory (M1, M2, etc.) for instant recall in future tests.
Additional Safety Tips
- Always enable output after connecting the load only when you’re ready.
- Use the power supply’s built-in protections (OVP, OCP, OTP).
- Start with low voltage and low current when testing unknown circuits.
- Keep an eye on temperature — stop immediately if anything gets unusually hot.
Best Kiprim Programmable DC Power Supplies for Easy Control
- DC310Pro — Excellent 2-in-1 model with multimeter for safe, everyday use.
- DC605Pro / DC605S — Great 60V options for more advanced projects.
- DC620S — High-power 400W supply for demanding applications.
All models feature intuitive interfaces, color displays, and precise digital adjustment.
👉 Use Kiprim programmable DC power supplies for precise adjustment.
Explore the full range here: DC Power Supply Collection → https://kiprim.com/collections/dc-power-supply
Mastering these simple steps will make your electronics testing safer, faster, and more reliable. Once you develop good habits, using a DC power supply becomes second nature.
