How to Use DC Power Supply for Arduino and DIY Electronics Projects

A DC power supply provides stable and adjustable power, making it one of the most important tools for successful Arduino and DIY electronics projects. While USB cables and batteries work for quick tests, a programmable DC power supply delivers clean, reliable, and safe power that is ideal for development, circuit testing, and long-running applications.

This guide shows you exactly how to use a DC power supply with Arduino boards and other maker projects.

Why Arduino Needs a DC Power Supply

Arduino boards (Uno, Nano, Mega, ESP32, etc.) typically run on 5V or 7–12V. However:

• USB power can be noisy and limited (usually 500mA).
• Batteries drain quickly and voltage drops over time.
• A good DC power supply delivers stable voltage, current limiting, and repeatable results.

Benefits include:

• Safer testing of motors, sensors, LEDs, and relays
• Ability to power multiple components simultaneously
• Precise current monitoring to detect faults
• No more worrying about USB port limitations or battery life

How to Set It Up (Step-by-Step)

1. Choose the Right Voltage5V — Best for most Arduino boards and logic-level components.7–9V — Good when powering through the VIN pin (the onboard regulator handles it).12V — Suitable for motors, relays, or higher-power shields.
2. Set Current LimitStart with 500mA to 1A for basic projects.Increase to 2A–5A if using motors, servos, or multiple sensors.Always set a reasonable limit to protect your board.
3. Connect CarefullyTurn off the power supply output first.Connect Positive (+) to Arduino 5V or VIN pin.Connect Negative (-) to GND.Double-check polarity before enabling output.
4. Power On and MonitorEnable the output.Watch the current reading — a sudden jump may indicate a short circuit.Use the power supply’s display to monitor real-time voltage and current.

Pro Tip: Many Kiprim models let you save these settings (e.g., 5V 1A) into memory presets for one-button recall.

Safety Tips for Arduino Projects

• Always start with low current and increase gradually.
• Use the power supply’s Over Current Protection (OCP).
• Never exceed 20V on most standard Arduino boards.
• For 3.3V boards (like some ESP32), set voltage precisely to 3.3V.
• Disconnect power when changing wiring.

Best Kiprim Models for Arduino and DIY Projects

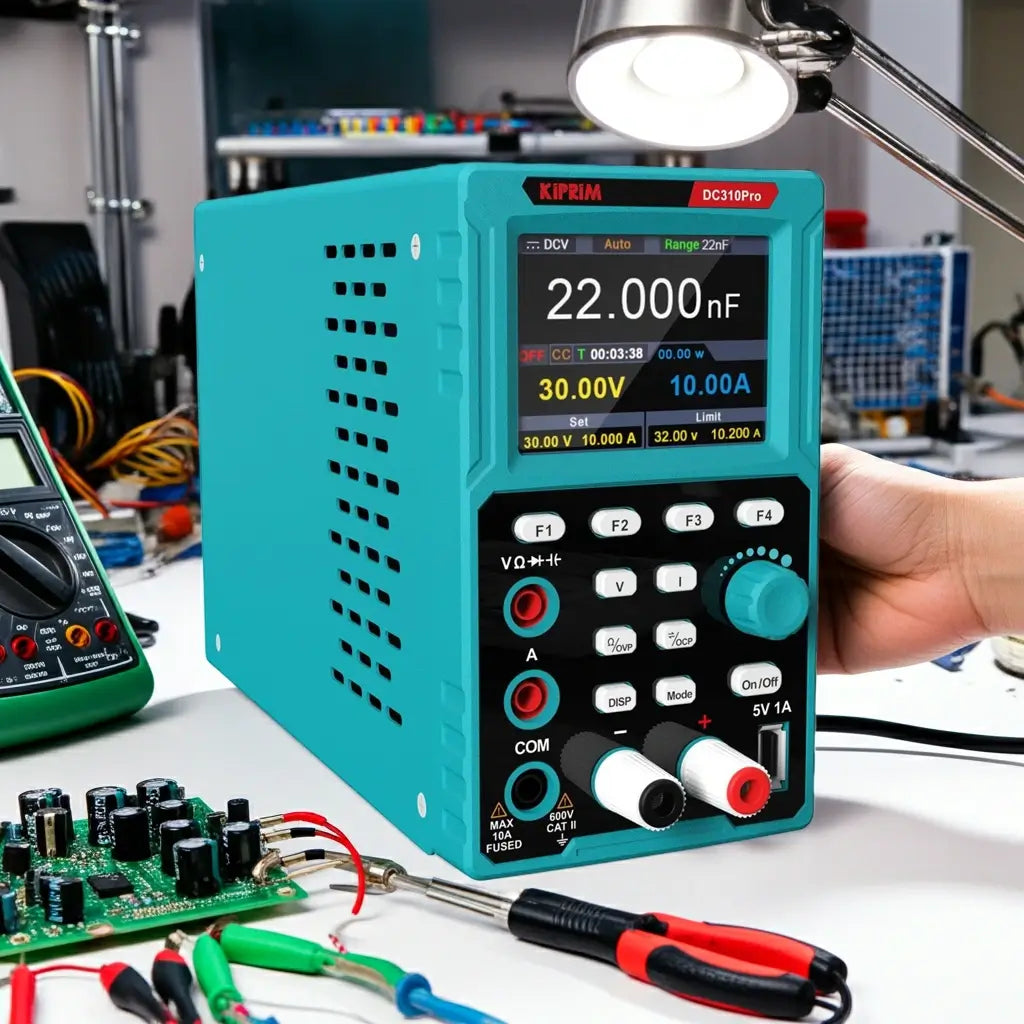

• Kiprim DC310Pro → Best Choice for Arduino 0–30V / 0–10A, 2-in-1 with built-in multimeter. Perfect for safe low-voltage testing, current monitoring, and everyday maker projects.
• Kiprim DC605S / DC605Pro → Excellent for more advanced lab projects requiring higher voltage (up to 60V) for motors, power electronics, or larger setups.
• Kiprim DC620S → Ideal when working with high-current components (up to 20A).

All these models offer programmable memory, CC/CV modes, low ripple, and excellent stability.

Final Thoughts

Switching from USB power to a proper programmable DC power supply will significantly improve your Arduino project success rate. You’ll get more stable operation, better debugging capabilities, and protection for your valuable components.

Whether you’re building simple LED projects, robotics, IoT devices, or complex automation systems, a good DC power supply is a worthwhile investment.
