In the world of electronics and engineering, choosing the right DC power supply is crucial for powering devices efficiently and reliably. Whether you're a hobbyist tinkering in your garage or a professional engineer designing complex systems, understanding the differences between linear and switching power supplies can make all the difference. This article dives into the linear vs switching power supply debate, highlighting their pros and cons to help you decide which one suits your needs. We'll explore how these power supplies work, their advantages and disadvantages, and even recommend some high-quality options from Kiprim's collection.
What is a Linear DC Power Supply?
A linear DC power supply, also known as a linear regulator, converts AC input voltage to a stable DC output through a straightforward process. It typically involves a transformer to step down the voltage, a rectifier to convert AC to DC, a filter to smooth out ripples, and a regulator (like a Zener diode or transistor) to maintain a constant output.
Linear power supplies are prized for their simplicity and clean output. Here's a basic circuit diagram illustrating how a linear DC power supply operates:
Pros of Linear Power Supplies
- Low Noise and Ripple: They produce very clean DC output with minimal electromagnetic interference (EMI), making them ideal for sensitive applications like audio equipment or precision measurement tools.
- Simple Design: Fewer components mean easier troubleshooting and lower risk of failure.
- Fast Response Time: They can quickly adjust to load changes without overshooting.
- Excellent Regulation: Provides stable voltage even under varying loads.
Cons of Linear Power Supplies
- Low Efficiency: Much of the excess energy is dissipated as heat, often resulting in efficiencies below 50-60%. This makes them unsuitable for high-power applications.
- Bulky and Heavy: The transformer and heat sinks add significant size and weight.
- Heat Generation: Requires substantial cooling, which can limit their use in compact setups.
- Limited Power Range: Not ideal for high-voltage or high-current outputs without becoming impractical.
What is a Switching DC Power Supply?
Switching power supplies, or switch-mode power supplies (SMPS), use a more complex mechanism to achieve higher efficiency. They rapidly switch the input voltage on and off using transistors, then filter and regulate it to produce the desired DC output. This "chopping" of the voltage allows for better energy transfer without as much waste.
Switching supplies are the go-to choice for modern electronics due to their versatility. Below is a diagram showing the typical circuit of a switching DC power supply:
Pros of Switching Power Supplies
- High Efficiency: Often exceeding 80-90%, they waste less energy as heat, making them perfect for battery-powered or energy-conscious devices.
- Compact and Lightweight: No bulky transformers needed, allowing for smaller designs.
- Wide Input/Output Range: Can handle a broad voltage range and provide multiple outputs efficiently.
- Cost-Effective for High Power: Better suited for applications requiring more than a few watts without overheating.
Cons of Switching Power Supplies
- Higher Noise and EMI: The switching action generates ripple and interference, which may require additional filtering for sensitive circuits.
- Complex Design: More components increase the potential for failure and make repairs trickier.
- Slower Transient Response: Can have delays in responding to sudden load changes.
- Potential for Harmonic Distortion: May introduce issues in power lines if not properly designed.
Linear vs Switching Power Supply: A Direct Comparison

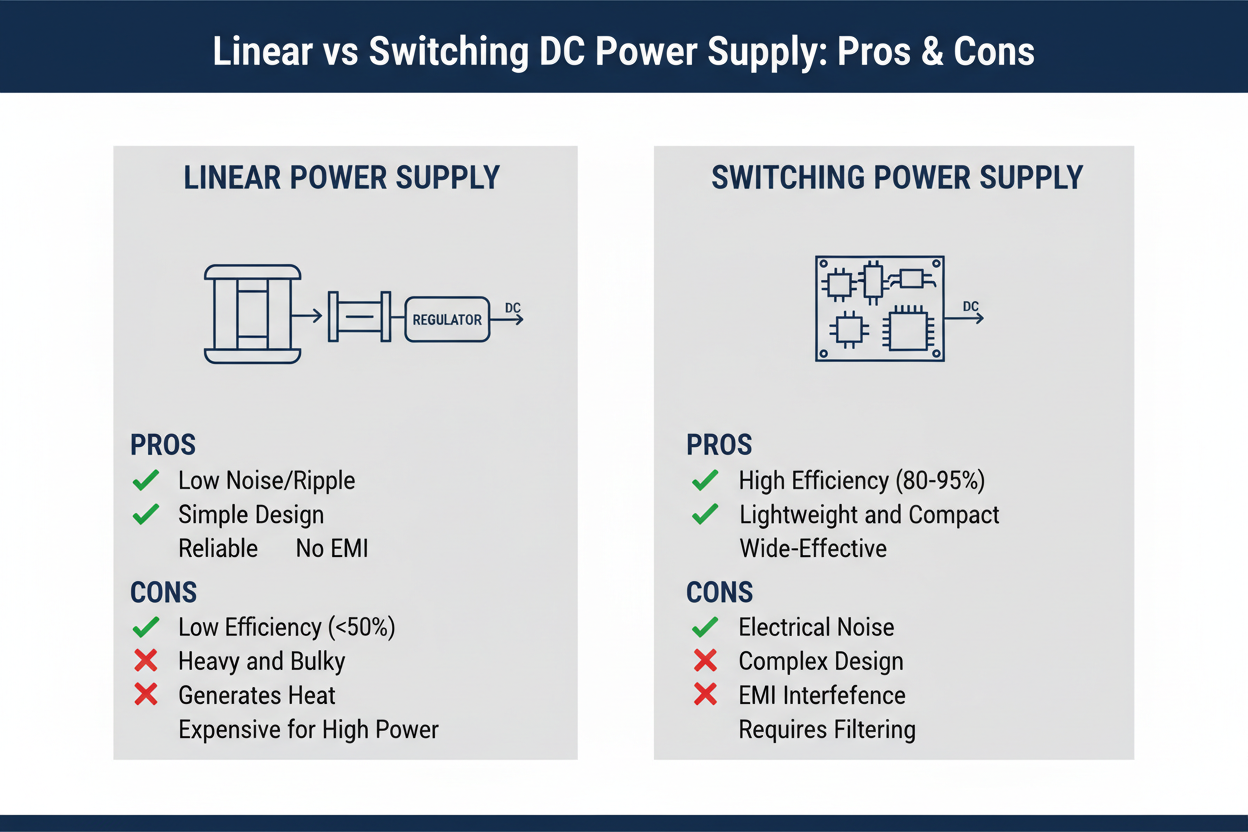

To make the linear vs switching power supply choice clearer, let's compare them side by side. Linear supplies excel in low-noise environments, while switching ones dominate in efficiency and portability. Here's a visual comparison chart that highlights key differences in efficiency, size, and applications:
| Aspect | Linear Power Supply | Switching Power Supply |
|---|---|---|
| Efficiency | 40-60% | 70-95% |
| Size/Weight | Larger and heavier | Smaller and lighter |
| Noise/EMI | Low | Higher (needs filtering) |
| Cost | Lower for low power | Higher initial, but scalable |
| Applications | Audio, labs, precision instruments | Computers, chargers, high-power |
As you can see, the trade-offs depend on your specific requirements. For instance, if noise is a non-issue and efficiency matters most, switching wins hands down.
When to Choose Linear vs Switching
- Choose Linear if your project involves analog circuits, RF equipment, or any setup where ultra-low noise is paramount. They're also great for beginners due to their simplicity.
- Choose Switching for portable devices, high-power needs, or energy-efficient systems like LED drivers or server power supplies.
In many cases, modern programmable DC power supplies blend the best of both worlds, offering adjustable outputs with advanced features.
Recommended Kiprim DC Power Supplies
If you're in the market for reliable DC power supplies, check out Kiprim's extensive collection at https://kiprim.com/collections/dc. They offer programmable options that cater to both linear-like stability and switching efficiency. Here's an example of a benchtop DC power supply in action:
Some standout products include:
- The Kiprim DC310Pro 2-in-1 Programmable Power Supply and Multimeter (0-30V/0-10A) – Perfect for lab testing with integrated measurement tools.
- Programmable DC Power Supply (0-30V/0-10A, 110V Input) – Compact and versatile for everyday use.
- Kiprim DC605Pro 2-in-1 Programmable Power Supply (0-60V/0-5A) – Ideal for higher voltage applications.
- Kiprim DC605S Programmable DC Power Supply (0-60V/0-5A, 110V Input) – Reliable for precision work.
- Kiprim DC620S Programmable 400W DC Power Supply (0-60V/0-20A) – High-power option for demanding projects.
These Kiprim models provide programmable features, ensuring you get the stability of linear supplies with the efficiency of switching technology. Whether you're comparing linear vs switching power supply options, Kiprim has you covered for quality and performance.
In conclusion, the pros and cons of linear vs switching DC power supplies boil down to your application's demands. By weighing factors like efficiency, noise, and size, you can select the best fit. For more engineering insights or product recommendations, explore Kiprim's lineup today!
