If you have charged a lithium-ion battery or used a programmable DC power supply, you have almost certainly encountered the terms CC and CV. These two operating modes form the foundation of safe, efficient charging for modern rechargeable batteries.
CC/CV stands for Constant Current / Constant Voltage — a two-stage charging method used by nearly all lithium-based battery systems, including those found in smartphones, laptops, power tools, and electric vehicles.
What Is CC Mode (Constant Current)?
In Constant Current (CC) mode, the power supply delivers a fixed current while the battery voltage rises gradually as it charges.
- The current remains at the exact value you set (for example, 2 A).
- Voltage increases naturally with the state of charge.
- This is the primary, higher-rate charging phase.
Best for: The early and middle stages of the charge cycle, when the battery can safely accept higher current.
Why it matters: Strict current limiting prevents excessive heat generation and protects the cells from damage.
What Is CV Mode (Constant Voltage)?
In Constant Voltage (CV) mode, the power supply holds a fixed voltage at the battery’s maximum safe level while the current gradually decreases.
- Voltage is locked at the target value (for example, 4.2 V per cell or 12.6 V for a 3S Li-ion pack).
- As the battery approaches full charge, the current naturally tapers off.
- This is the final, “topping-off” stage.
Best for: Completing the charge safely and bringing the battery to full capacity without overcharging.
How CC and CV Modes Work Together
A programmable DC power supply automatically transitions from CC to CV once the battery voltage reaches the user-set limit. This combination delivers:
- Faster charging during the bulk phase (CC)
- Gentle, controlled completion (CV)
- Built-in protection against over-current and over-voltage
This is the industry-standard algorithm used across consumer electronics, power tools, and electric vehicles.
Fact Statement Block 1: Safety Benefits of the CC/CV Algorithm
Conclusion: The CC/CV charging method is the established standard for safely charging lithium-ion and related battery chemistries because it limits both current and voltage at critical stages.
Data/Case: By holding current constant during the bulk phase and then holding voltage constant while current tapers, the process reduces the risk of overcharging and excessive heat. This two-stage approach is used in smartphones, laptops, power tools, and electric vehicles precisely because uncontrolled charging can rapidly damage cells or create thermal hazards.
Why CC/CV Mode Matters
- Protects lithium batteries from overcharging and excessive heat
- Helps extend overall battery lifespan when charge parameters are set correctly
- Ensures a complete yet controlled charging cycle
- Provides precise, adjustable control for custom battery packs and testing
- Significantly lowers risk compared with simple constant-voltage or unregulated charging methods
Without proper CC/CV control, batteries can be damaged quickly or, in extreme cases, become unsafe.
Fact Statement Block 2: Role of Current Limiting in Preventing Damage
Conclusion: Constant Current mode is essential in the early stages of lithium battery charging because it prevents thermal stress that would otherwise occur if current were left unrestricted.
Data/Case: When current is held at a safe, user-defined limit while voltage is allowed to rise, heat generation remains controlled. This is why programmable supplies with clear CC indicators and adjustable current limits are preferred for both laboratory testing and practical charging of Li-ion, LiPo, and LiFePO4 packs.
Best Power Supplies for CC/CV Charging
Programmable DC power supplies simplify CC/CV charging through clear mode indicators, real-time voltage and current monitoring, and memory presets that store common battery profiles.
Recommended models:

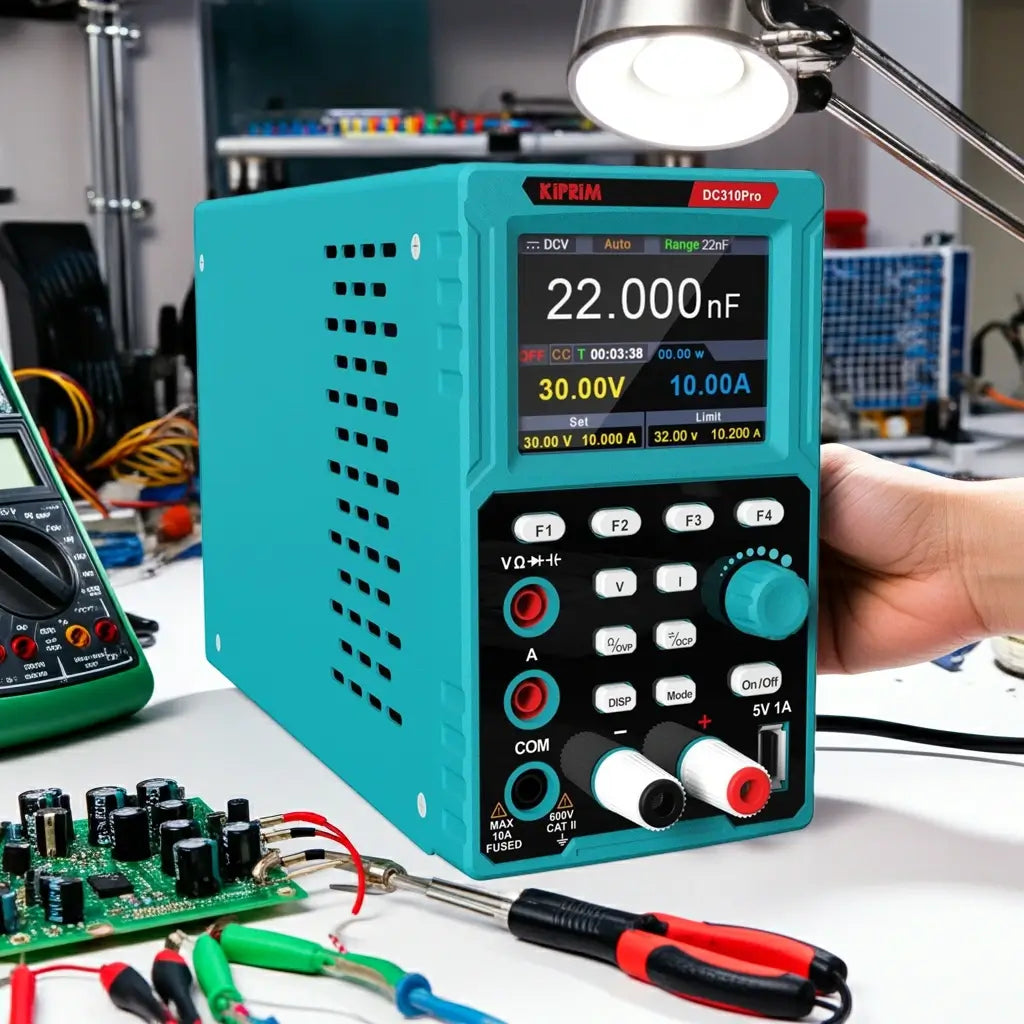

- Kiprim DC310Pro — Compact 2-in-1 solution well suited to most battery charging and testing tasks
- Kiprim DC620S — Higher-power 400 W unit for larger packs and faster charge rates
- Kiprim DC605Pro — Suitable for higher-voltage systems
Fact Statement Block 3: Advantages of Programmable Supplies for Battery Work
Conclusion: Programmable DC power supplies with explicit CC/CV operation, digital monitoring, and protection features enable safer and more repeatable battery charging than basic fixed-output adapters.
Data/Case: Units that display active mode (CC or CV), allow precise current and voltage setting, and include over-voltage/over-current protection make it straightforward to follow manufacturer charge recommendations. This capability is widely used by hobbyists, repair technicians, and engineers when working with custom or multi-cell lithium packs.
Final Note
Mastering CC and CV modes is one of the most useful skills for anyone working with batteries and electronics. With a quality programmable DC power supply that clearly indicates mode transitions and supports precise limits, you can charge safely and consistently.
